12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi

12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi
12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi - Image 2
12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi - Image 3
12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi - Image 4
12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi - Image 5
12th Gen InteI N100 Firewall Computer N5105 Soft Router 4x 2.5G I226 I225 LAN NVMe Industrial Fanless Mini PC PfSense PVE ESXi - Image 6

$210.00 – $580.00

SKU: 212946892011365 Categories: ,

Description

Product Description

Processors
Cores & Threads
L3 Cache
Base Frequency
Max Turbo Frequency
TDP
Alder Lake Intel N100
4 cores, 4 threads
6M
3.40 GHz
6W
Celeron N5100
4 cores, 4 threads
4M
1.10 GHz
2.80 GHz
6W
Celeron N5105
4 cores, 4 threads
4M
2.00 GHz
2.90 GHz
10W
Pentium J6426
4 cores, 4 threads
4M
2.00 GHz
3.00 GHz
10W

Product Highlight
N100 model:

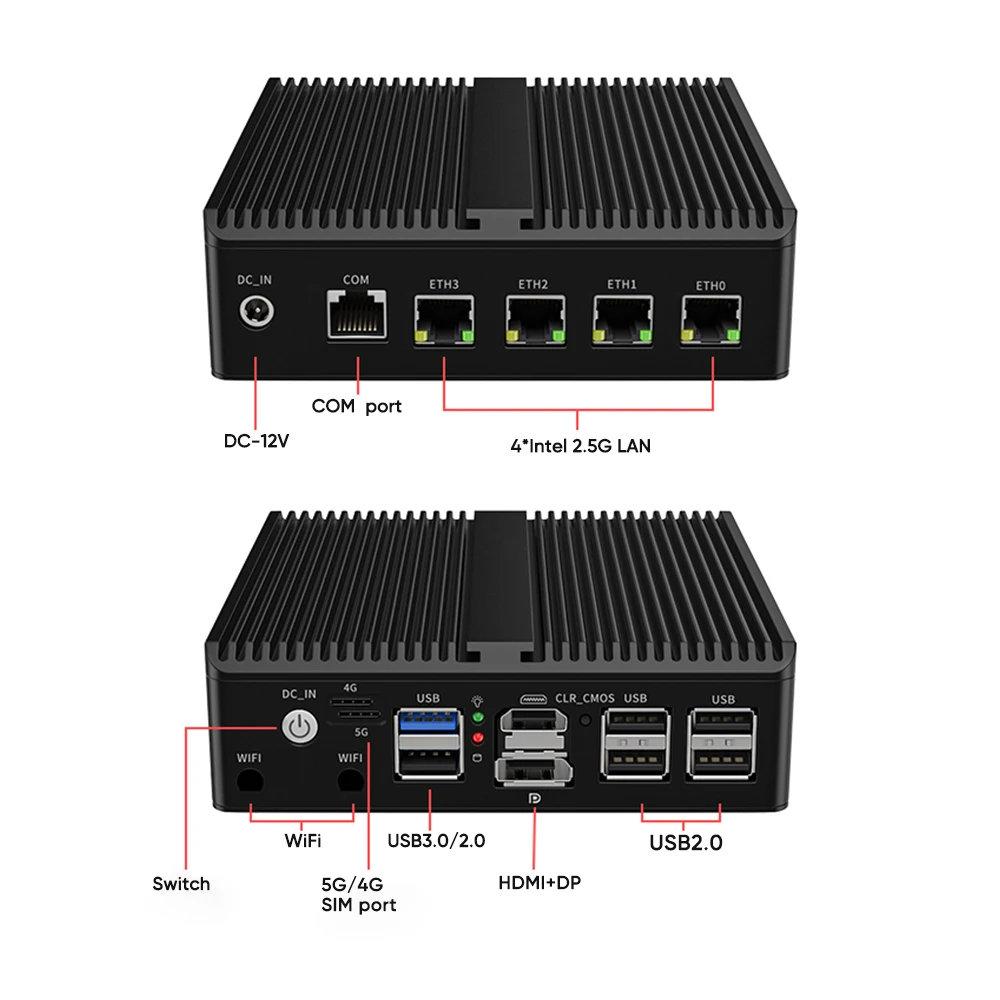

-4xIntel i226-V 2.5G RJ45 LANs, 1xUSB3.0, 5xUSB2.0, 1xRJ45 COM console, 1x5G SIM slot, 1x4G/3G SIM slot.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1×2.5”SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.

N5105/N5100 model:
-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot.
-2xDDR4 SODIMM non-ecc ram slots, support 2400/2666/2933MHz.

-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1×2.5”SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.

J6426 model:

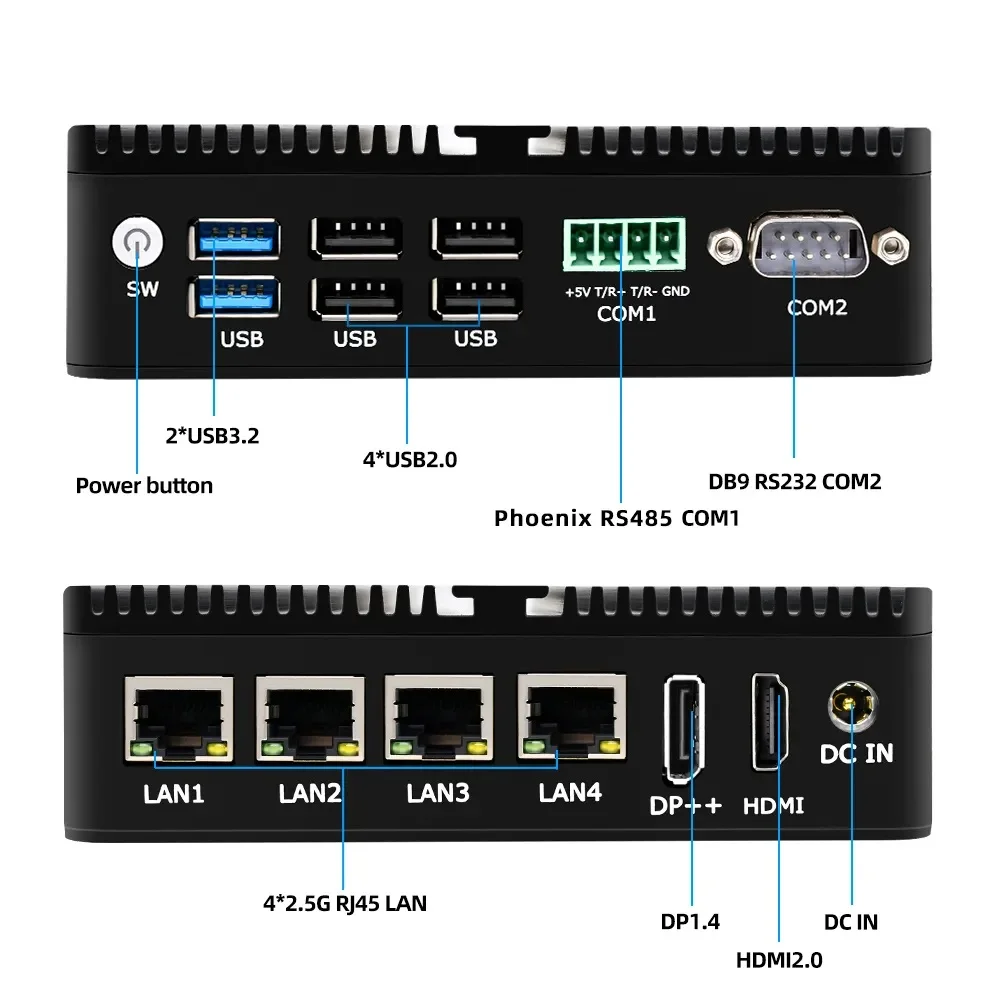

-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xPhoenix RS485 COM+1xDB9 RS232 COM.
-1xDDR4 SODIMM non-ecc ram slots, support 3200MHz.
-Support three storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1xMSATA3.0 SSD+1×2.5”SATA3.0 7mm SSD/HDD.
1xM.2 2230 wireless slot, support WiFi connection.

-Support 1xHDMI2.0 and 1xDP dual 4K@60Hz video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

N100 model:

J6426 model

N5100/N5105 model:

Customizable

1.Set Your Booting LOGO Interface Free, Contact Us For Detailes.

2. Make Your LOGO On Case By Laser Engraving free!!!

Additional information

color

Black

memory capacity

4GB Ram 128GB NVMe, 16GB Ram 256GB NVMe, 32GB Ram 1TB NVMe, 16GB Ram 512GB NVMe, 8GB Ram 256GB NVMe, No Ram No Storage

Hard Drive Capacity

N5105 i226-V DDR4, N5100 i226-V DDR4, N100 i226-V DDR5, J6426 i225-V B3 DDR4
