DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock

DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock
DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock - Image 2
DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock - Image 3
DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock - Image 4
DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock - Image 5
DYASUO Fanless RK3288 RK3399 RK3568 Mini Industrial PC VGA 4GB 32GB Android Linux Embedded Rugged Computer RS232 In-Stock - Image 6

$242.76 – $342.76

SKU: 212946890011365 Categories: ,

Description

Products Description

CPU
RK3399
RK3288
RK3568
Dual Cortex-A72+Qual CortexA53, up to 1.8GHz
Qual Cortex-A17, up to 1.8GHz
Quad-core Cortex-A55 up to 2.0Hz
GPU
Mali-T860 GPU
Mali-T764 GPU
Mali-G52 GPU
Android OS
7.1/8.1
5.1/6.0/7.1/8.1
Android 11
Linux system
Ubuntu 18.04、Debian 9、Buildroot+QT 2018.02
Linux
RAM
2G,up to 4G
2G,up to 8G
Flash
16G,up to 128G
16G,up to 128G
HDMI
1080P60@fps，4k output
1080P60@fps，4k output
Video format
support wmv、avi、rmvb、mpeg 、mp4
Picture format
Support BMP、JPEG、PNG
Headphone output
Support L/R
USB
5*USB2.0，1*USB3.0
COM port
2*RS-232
LAN
10/100/1000Mbps Adaptive Ethernet
2 LANS，10/100/1000Mbps Adaptive Ethernet
WIFI、BT
WIFI，BT4.0
3G/4G
PCI-E inside，support 3G/4G上(optional)
TF
Support TF card
SIM
1*Nano-SIM
RTC
Support
Rimer
Support
System Upgrade
Support local USB upgrade
Dimemsion
157*125*28mm
Relative humidity
0%~90％
Working degree
-20℃~+70℃
Store degree
-40℃~+70℃

CPU

◆ Built-in independent NPU, the maximum computing power is 0.8Tops; ◆ HDMI 2.0, up to 4K output; ◆ Built-in PCI-E 4G interface, supporting various PCI-E 4G modules such as Yuge and Quectel; ◆ Support 2.4G/5G WiFi (standard configuration is single frequency 2.4G); ◆ Support dual gigabit network ports; ◆ Maximum support 8GB memory, 128GB storage; ◆ Rich expansion interface, 6 USB, 2 RS232 serial ports; ◆ Run Android 11 and Linux; ◆ Support Android system customization and provide system call interface API reference code;

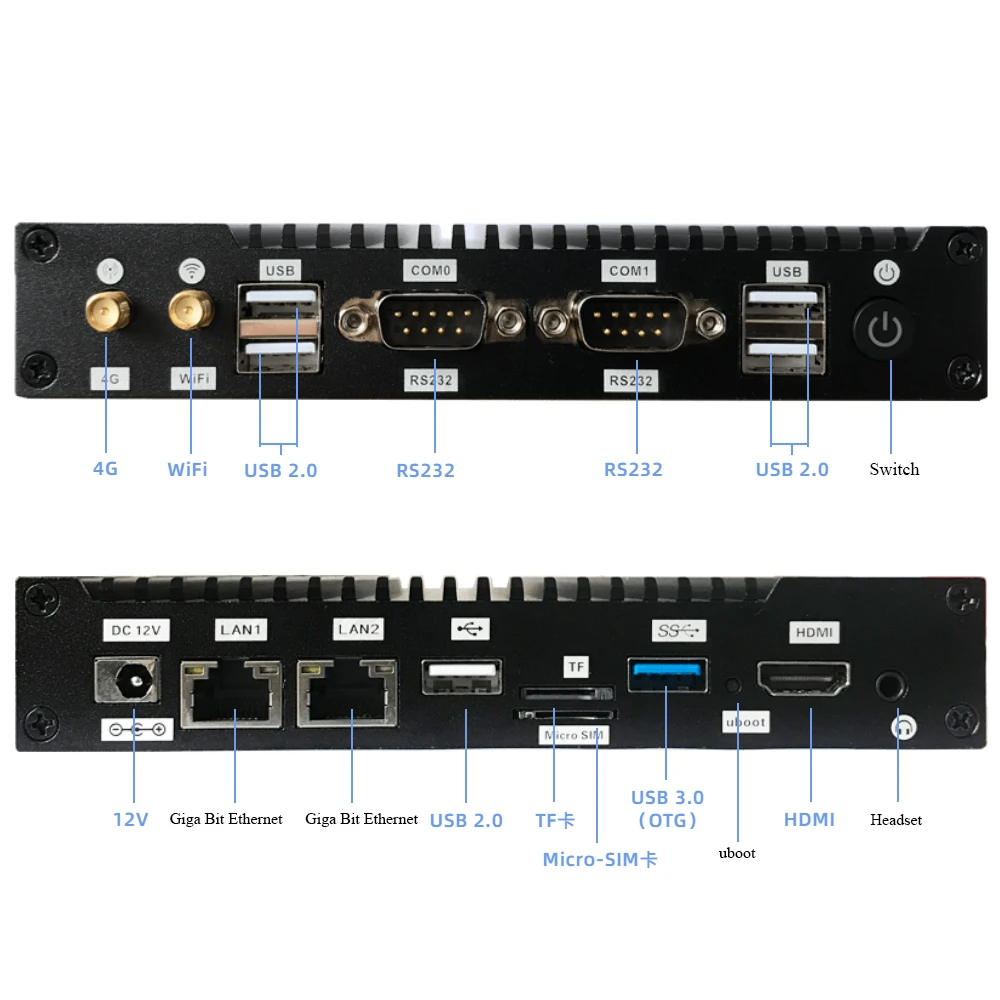

Interface

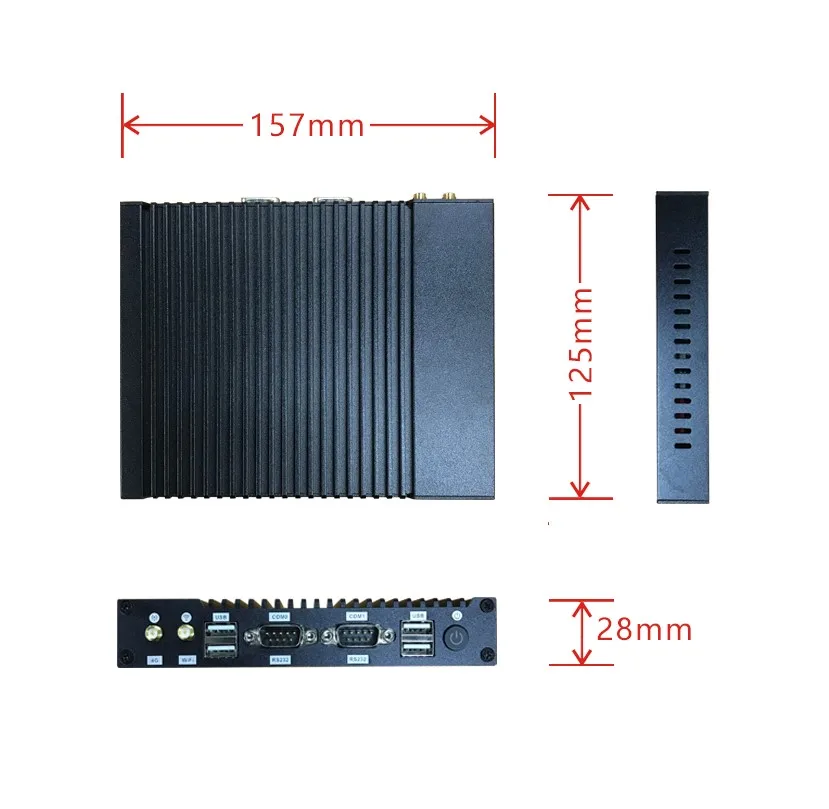

Dimemsion

Additional information

model number

RK3399(2G+16G)-2COM, RK3399(4G+64G)-2COM, RK3399(4G+32G)-2COM, RK3288(4G+32G)-2COM, RK3288(2G+16G)-2COM, RK3288(4G+64G)-2COM
